| Powertrain | |
|---|---|
| Engine Type | Loncin brand 175ml, SOHC, 4 strokes, single cylinder |
| Displacement (cc) | 200CC |
| Max. Power (KW/HP) | 9Kw(8000±500r/min) |
| Max. Torque | 13N.m(6000±500r/min) |
| Fuel System | Carburator, PD24J |
| Starting System | Electric start |
| Transmission | CVT, F-N-R |
| Drive Type | O-ring chain drive KMC 530 |
| Chassis | |
| Front Suspension | Front Double A-arm independent suspension/Rear Swing Arm |
| Brake | 4-Wheel Hydraulic Disc with Dual-Bore front and rear calipers |
| Front/Rear Tyre | ATV 25 ×8- 12 / ATV 25 ×10- 12 |
| Front/Rear Rim | Cast Aluminum |
| Dimensions | |
| Overall Dimensions (LxWxH) | 2110*1160*1330/83*45.7*52.4 |
| Wheelbase | 820 / 32.3 |
| Front Track | 950 /374 |
| Rear Track | 950 /374 |
| Ground Clearance | 340/13.4 |
| Seat Height | 480/18.9 |
| Capacity | |
| Fuel Tank Capacity | 8.5 / 2.25 |

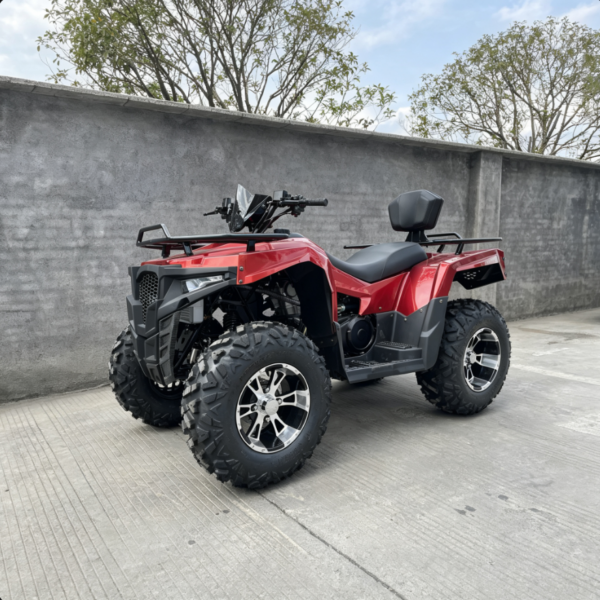

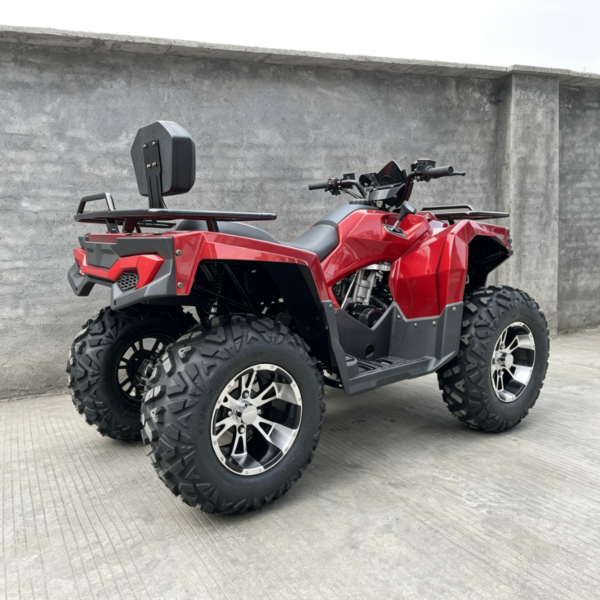

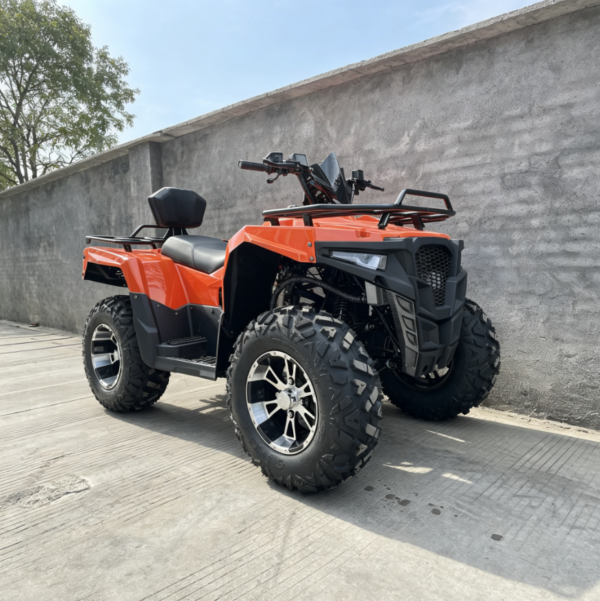

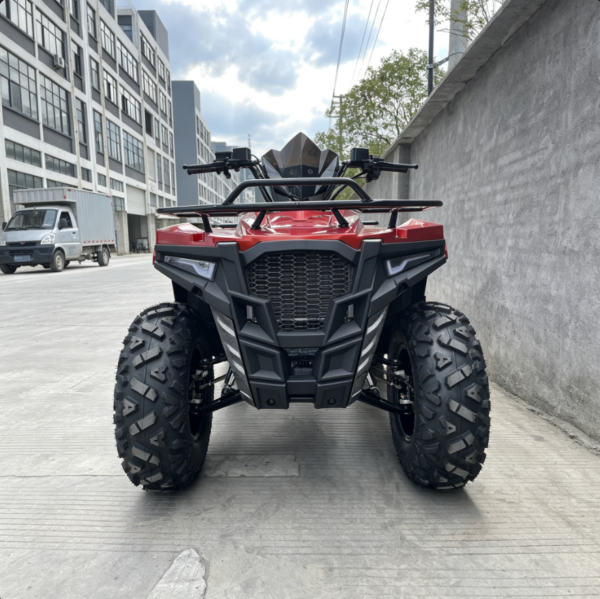

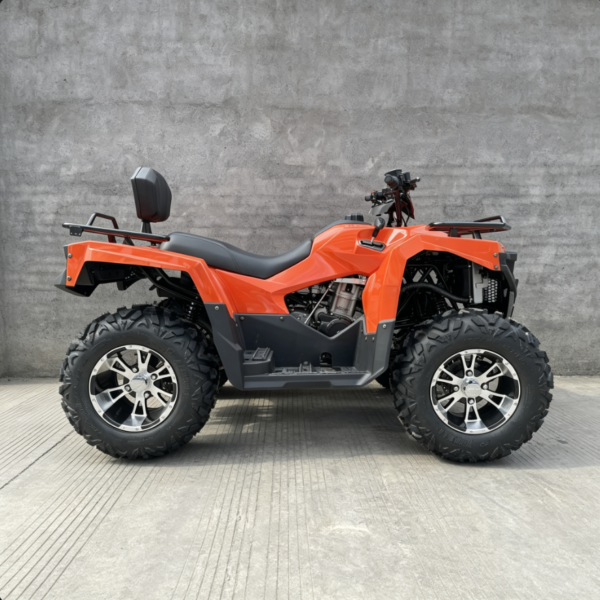

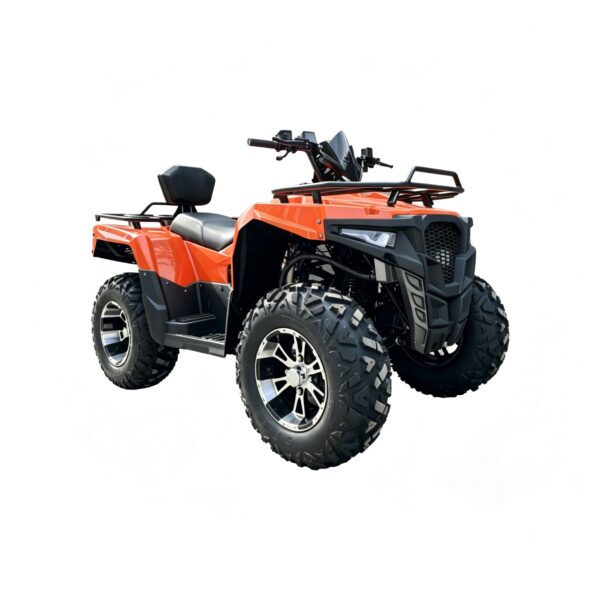

LS-ATV200 200cc ATV
The LS-ATV200 is a 200cc entry-level ATV with 9KW Loncin engine. Perfect for beginners, trail riding and light utility, it offers reliable performance at export pricing.
Engine Size200CC
Drive TypeChain Drive
Horsepower9KW
Ground Clearance340mm
SuspensionFront Double A-arm / Rear Swing Arm
