| Powertrain | |
|---|---|
| Engine Type | V-twin, water-cooled, 4-stroke, SOHC, 4 valves/cylinder |
| Displacement (cc) | 976CC |
| Max. Power (KW/HP) | 66Kw(7200±500r/min) |
| Max. Torque | 95N.m(6000r/min) |
| Cooling System | Liquid-cooled |
| Fuel System | BOSCH EFI |
| Starting System | Electric start |
| Transmission | CVT |
| Drive Type | 2WD/4WD/Front differential lock EPS |
| Chassis | |
| Front Suspension | Double A-arm Independent Suspension |
| Brake | Front and rear hydraulic disc brake |
| Front/Rear Tyre | ATV 29×9-14 / ATV 29×9-14 |
| Front/Rear Rim | Aluminum Front：14×7.0 Rear: 14×8.5 |
| Dimensions | |
| Overall Dimensions (LxWxH) | 2320x1230x1550 |
| Wheelbase | 1470 |
| Front Track | 990/940 |
| Rear Track | 990/940 |
| Ground Clearance | 330 |
| Seat Height | 910 |
| Dry Weight | 430 |
| Capacity | |
| Fuel Tank Capacity | 25 |

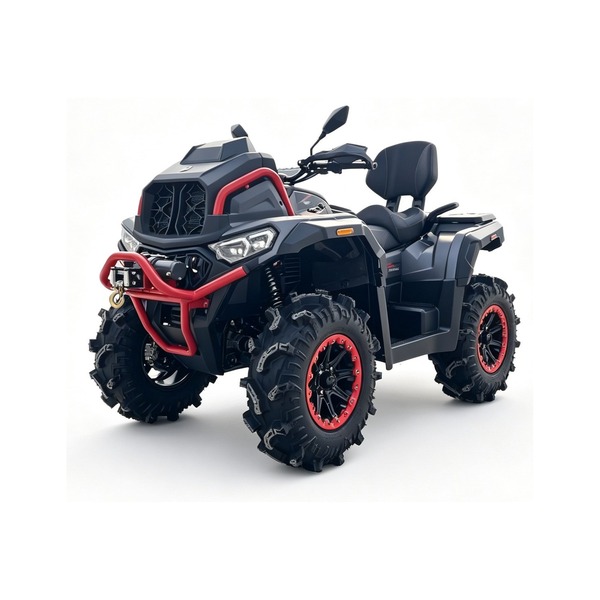

LM-ATV1000-1 976cc 4×4 Mud ATV
The LM-ATV1000-1 is a 976cc V-twin mud ATV with 66KW power and aggressive mud tires. A high-performance off-road machine for dealers and distributors seeking top-end power.
Engine Size976CC
Drive Type2WD/4WD
Horsepower66KW
Ground Clearance330mm
SuspensionDouble A-arm Independent Suspension
