| Powertrain | |
|---|---|
| Engine Type | 4-Stroke V-Twin，SOH |
| Displacement (cc) | 976CC |
| Max. Power (KW/HP) | 68.6Kw(7300±500r/min) |
| Max. Torque | 95N.m(5500r/min) |
| Fuel System | BOSCH EFI |
| Starting System | Electric start |
| Transmission | CVT |
| Drive Type | 2WD/4WD/Front differential lock EPS |
| Chassis | |

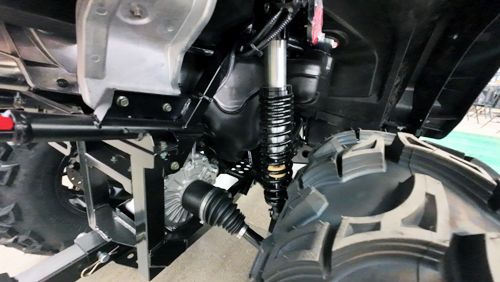

| Front Suspension | Front arched double A-arm with front sway bar / Rear Torsional Trailing arm Independent (TTI |
| Brake | Dual 260 mm disc brakes with hydraulic twin-piston calipers, Park In-Transmission and Hand Brak |

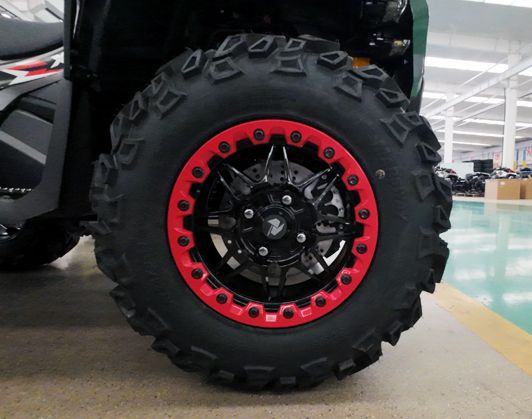

| Front/Rear Tyre | ATV 28×9- 14 / ATV 28 ×11- 14 |
| Front/Rear Rim | Aluminum Front：14×6.0 Rear: 14×8 |
| Dimensions | |
| Overall Dimensions (LxWxH) | 2450*1290*1500 (96.4*50.8*59 inch) |
| Wheelbase | 1493 / 59 |
| Front Track | 1000 /39.4 |
| Rear Track | 1000 /39.4 |
| Ground Clearance | 330mm/13 |
| Seat Height | 933/36.7 |
| Dry Weight | 460/1014 |
| Capacity | |
| Fuel Tank Capacity | 18.17 / 4.8 |

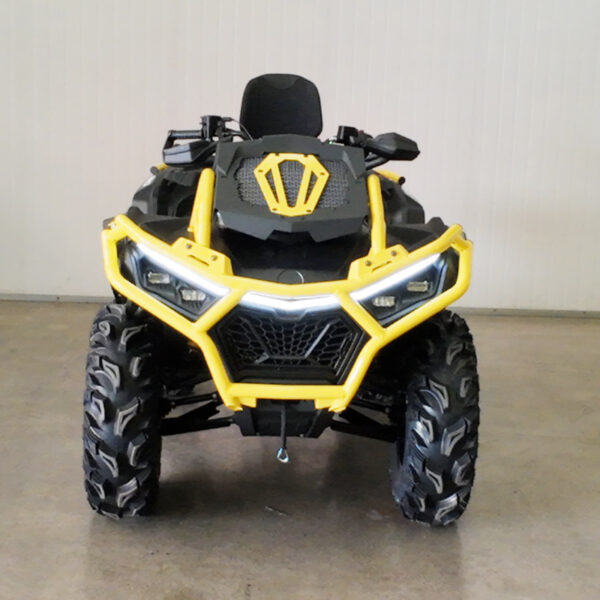

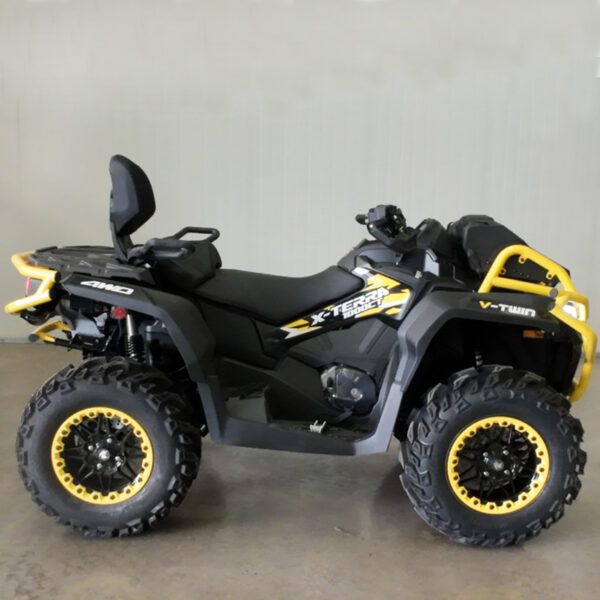

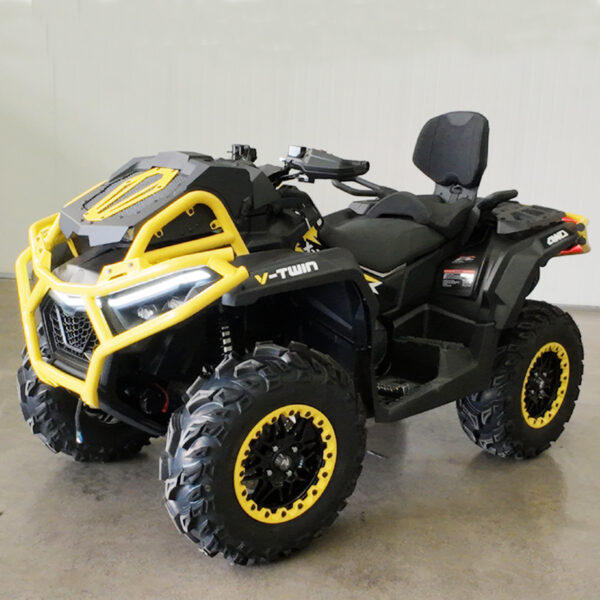

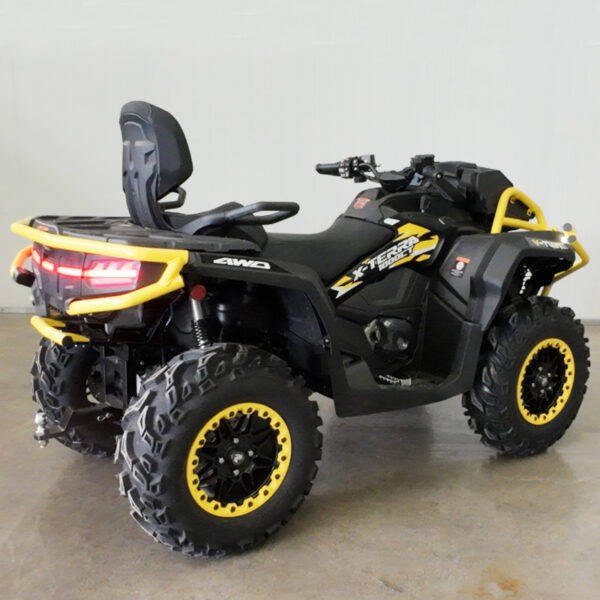

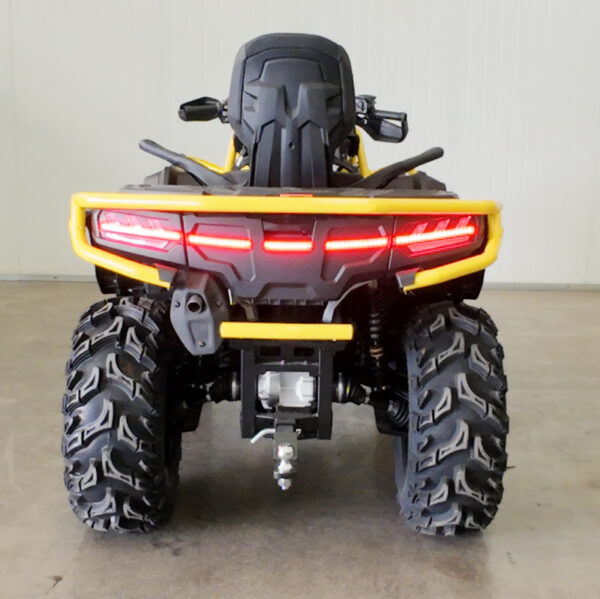

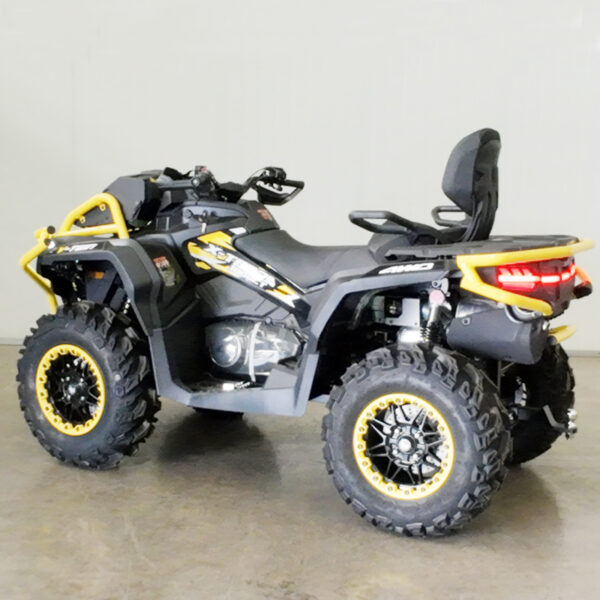

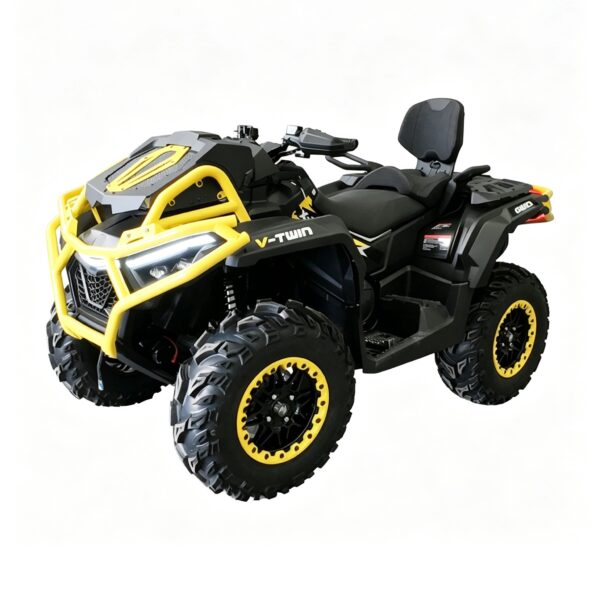

LM-ATV1000 976cc 4×4 Mud ATV
The LM-ATV1000 is a 976cc V-twin mud ATV with 68.6KW power and arched A-arm suspension. Purpose-built for mud riding and extreme terrain, it delivers the power buyers demand.
Engine Size976CC
Drive Type2WD/4WD
Horsepower68.6KW
Ground Clearance330mm
SuspensionArched A-arm / Rear TTI
