| Powertrain | |
|---|---|
| Engine Type | Single-cylinder , 4-stroke liquid-cooled, 4 valves |
| Displacement (cc) | 495CC |
| Max. Power (KW/HP) | 29Kw(6750rpm) |
| Max. Torque | 44N.m(6000rpm) |
| Cooling System | Liquid-cooled |
| Fuel System | BOSCH EFI |
| Starting System | Electric start |
| Transmission | CVT |
| Drive Type | 2WD/4WD/Front differential lock EPS |
| Chassis | |
| Front Suspension | Double A-arm independent suspension |
| Brake | Four wheel hydraulic discs+ rear wheel parking |
| Front/Rear Tyre | ATV 25 ×8- 12 / ATV 25 ×10- 12 |
| Front/Rear Rim | Front：12×6.0 Rear: 12×8 |
| Dimensions | |
| Overall Dimensions (LxWxH) | 2200*1180*1270/86.6*46.5*50 |
| Wheelbase | 1370 / 53.9 |
| Front Track | 970 /38.2 |
| Rear Track | 970 /38.2 |
| Ground Clearance | 310/12.2 |
| Seat Height | 900/35.4 |
| Dry Weight | 390 |
| Gross Weight | 460 |
| Capacity | |
| Seating Capacity | 2 |
| Fuel Tank Capacity | 20 / 5.28 |

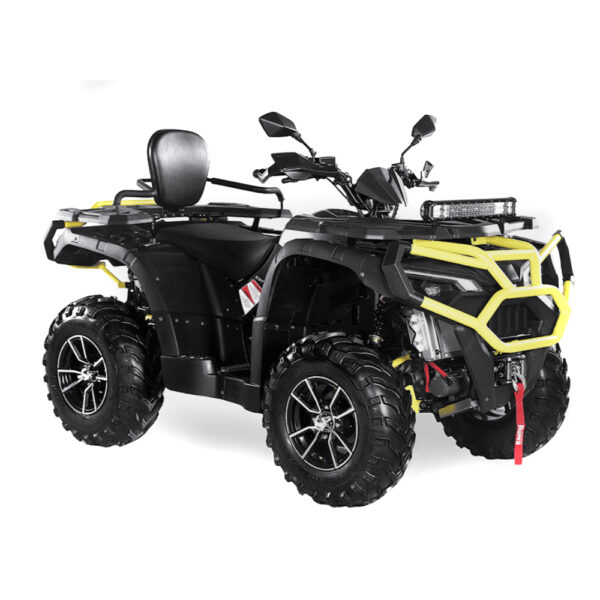

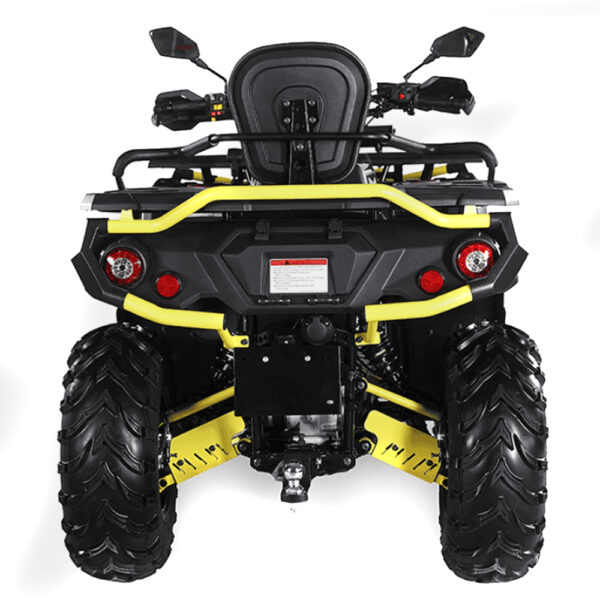

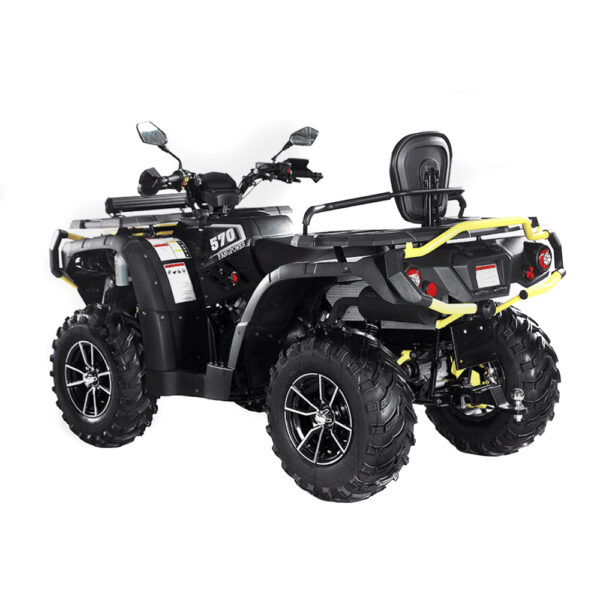

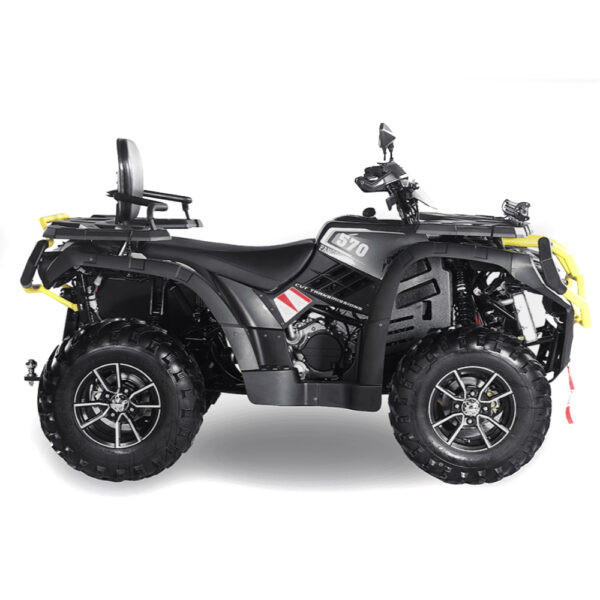

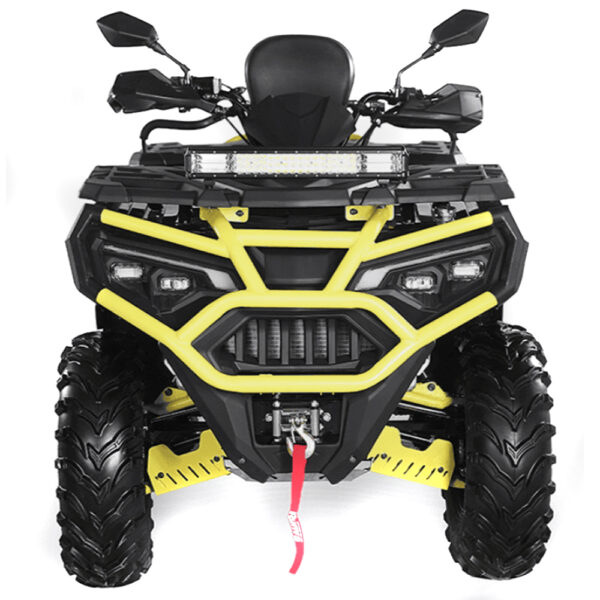

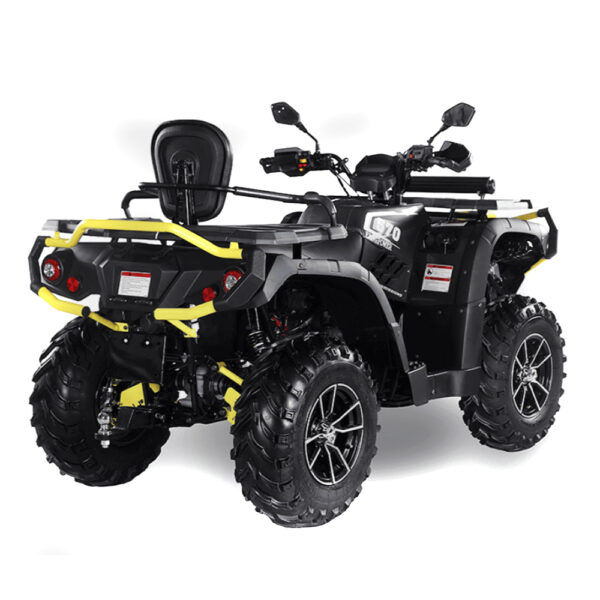

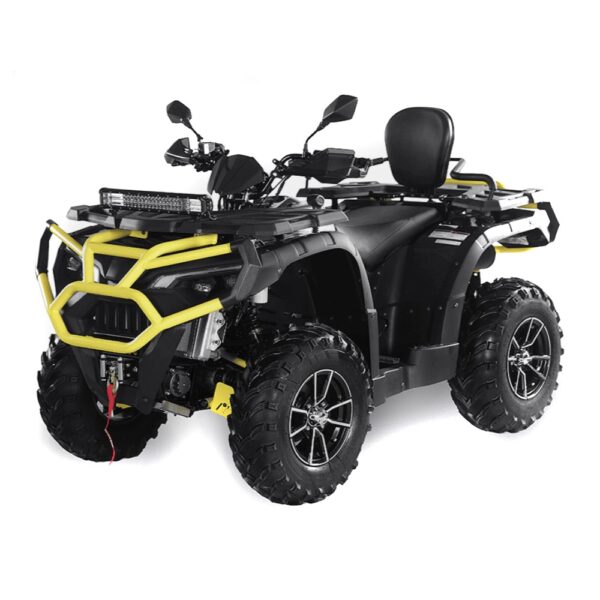

LS-ATV500 495cc ATV
The LS-ATV500 is a 495cc 4×4 ATV designed for trail and recreational use. Liquid-cooled EFI, double A-arm suspension and 29KW power make it a great entry-level 4×4 platform.
Engine Size495CC
Drive Type2WD/4WD
Horsepower29KW
Ground Clearance310mm
SuspensionDouble A-arm Independent Suspension
